Ultrasonic Anemometers

Description

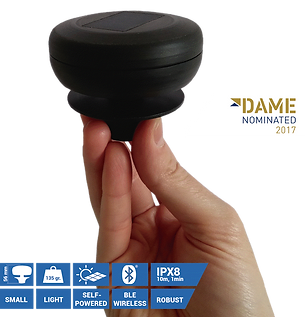

Bluetooth, solar powered and IPX8 pocket-sized ultrasonic anemometer

This self powered bluetooth 4.1 ultrasonic windmeter stays on for 29 days and 1 year without sun.

Built with ultrasonic sensors, it is providing one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.

Check the technichal specifications for further information.

Read our manual and check the technical information for helpful details about Ultrasonic Portable.

Specification

Wind Speed Range: 0 - 40 m/s (first units range: 0 - 25 m/s). Resolution: ±0.1 m/s.

Wind direction Range: 0 - 360º. Resolution: ±1.

Sensors

Ultrasonic transducers (4x). Sample rate: 1, 4, 8 Hz. Thermometer, Gyroscope, Accelerometer.

Power

Solar panel, internal battery, automatic power management.

Autonomy with no sunlight: in sleep mode up to 1 year, while measuring up to ~30 days.

Bluetooth Version: 4.1 or beyond. Range: Up to 50 m.

Firmware Upgradable. Current version: 0.52.

IPX8 protection grade (10 meters).

Dimensions Diameter: 70 mm. Height: 57 mm. Weight 135 grams.

Easy mount 16 mm (M16x2) female thread.

CMI1006

Ultrasonic Portable

Description

A powerful wired ultrasonic anemometer

Built with ultrasonic sensors, it is providing one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.

Check the technical specifications for further information about this wind meter.

Specification

Wind Speed Range: 0 to 40 m/s.

Resolution: ±0.1 m/s.

Wind direction Range: 0 - 360º.

Resolution: ±1.

Sensors

Ultrasonic transducers (4x). Sample rate: 1, 4, 8 Hz. Thermometer, Gyroscope, Accelerometer.

Power

VCC 5V - 24V.

Data output Bluetooth 4.1.

NMEA0183 (RS422, RS485), sentences selectable via Bluetooth

Baud rate: 4800/38400 (8n1) bauds.

Firmware Upgradable. Current version: 0.44.

NOT allow to be submerged fully or partially in water.

Dimensions Diameter: 70 mm. Height: 57 mm. Cable: 2 meters.** Weight 130 grams.

CMI1007

Ultrasonic Wired

Description

A Bluetooth, NMEA0183, WiFi wired Wind Instrument

Specification

Wind Speed Range: 0 to 40 m/s.

Resolution: ±0.1 m/s.

Wind direction Range: 0 - 360º.

Resolution: ±1.

Sensors

Ultrasonic transducers (4x). Sample rate: 1, 4, 8 Hz. Thermometer, Gyroscope, Accelerometer.

Power VCC 5V - 24V.

Data output Bluetooth 4.1., Wifi, NMEA0183 (RS422, RS485), sentences selectable via Bluetooth

Baud rate: 4800/38400 (8n1) baud.

Firmware Upgradable. Current version: 0.44.

NOT allowed to be submerged fully or partially in water.

Dimensions

Diameter: 70 mm. Height: 57 mm. Cable: 2 meters.* Weight 130 grams.

CMI1013

Ultrasonic Wired WiFi

Description

A NMEA0183 wired Wind Instrument

Specification

Wind Speed Range: 0 to 40m/s

Resolution: +/- 0.1m/s

Wind direction Range: 0 - 360˚

Resolution: +/- 1˚

Sensors: Ultrasonic Transducers (4x), Sample Rate: 1, 4, 8Hz

Power: VCC 5 - 24V

Data Output: NMEA0183

Not allowed to be submerged fully or partially in water

Dimensions: Diameter 70mm, Height 57mm, Cable 2 meters, Weight 130grams

CMI1014

Ultrasonic Wired Standard
